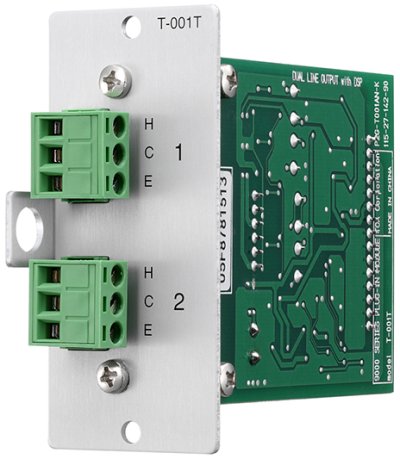

T-001T Dual Line Output Expansion Module with DSP

Specification

Power Source
+24 V DC, -24 V DC, +6 V DC
Current Consumption
35 mA (at +24 V DC), 35 mA (at -24 V DC), 60 mA (at +6 V DC)
Output
2 channels, max. +20 dB* (at 10 kΩ load), 600 Ω, electronically-balanced,
removable terminal block (3 pins)
Frequency Response
20 Hz - 20 kHz, +1, -3 dB
Total Harmonic Distortion + N
0.005 % (at 1 kHz, 20 Hz - 20 kHz BPF, 5 V output, 10 kΩ load)
S/N Ratio
Over 73 dB (at 20 Hz - 20 kHz BPF)
Residual Noise
Under -91 dB (at 20 Hz - 20 kHz BPF, VOL: -70 dB)
Cross Talk
Over 87 dB (at 20 kHz)
D/A Converter
24 bit DAC
Sampling Frequency
48 kHz
Tone Control
Bass: ±12 dB (at 100 Hz)
Treble: %%p12 dB (at 10 kHz)
Parametric Equalizer
10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB,
Q: 0.3 - 5
Speaker Equalizer
10 (setup software has 30 TOA speaker presets)
High-pass Filter
-12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Low-pass Filter
-12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Compressor
Depth: 1 - 5
Delay
0 - 40 ms (1 ms step), maximum 40 ms (CH 1 + CH 2), mixer mode only
Operating Temperature
-10 ℃ to +40 ℃
Finish
Panel: Aluminum, hair-line
Dimensions
35 (W) × 78 (H) × 91.5 (D) mm
Weight
82 g
Accessory
Removable terminal plug (3 pins) …2, Module mounting screw …2
